HELLIOS

Type

Selfpropelled

Tank Capacity

3000 l

Boom Width

21 - 30 m

Boom Types

ALU

HELLIOS

Type

Selfpropelled

Tank Capacity

3000 l

Boom Width

21 - 30 m

Boom Types

ALU

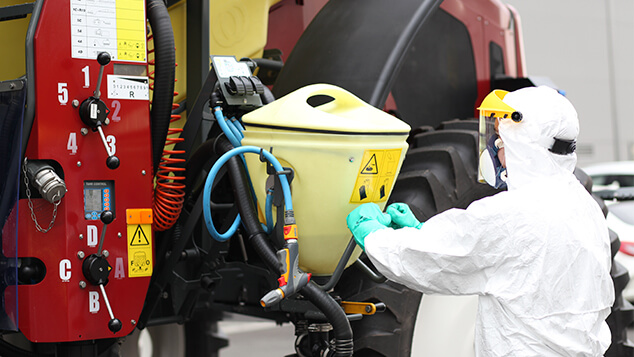

Chemfiller

The HELLIOS features a graduated induction hopper with 35 l capacity made of polyethylene.

Quick and easy manual lowering/ locking for transport.

Easy rinsing via a ring hose mounted to the ChemFiller walls. The Work Zone environment can be cleaned by means of a spray gun and an air gun.

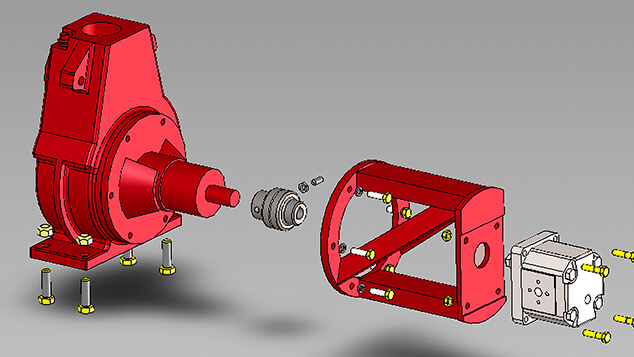

Spray pump

The HELLIOS is equipped with a Renson centrifugal pump delivering 500l/min. For customers applying high spray volumes, the HELLIOS can be equipped with an optional high capacity Hypro centrifugal pump with  692l/ min nominal flow. Both pump models are proven and sturdy.

Centrifugal pumps easily handle fluids with higher viscosity such as adjuvants or liquid fertilizers.

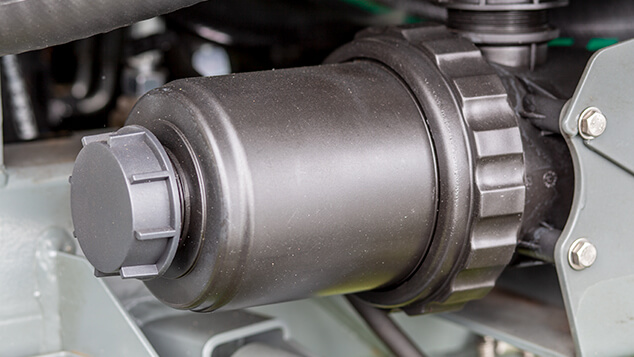

Suction / Pressure filters

To prevent nozzle obstructions, the fluid is consistently filtered. There is one filter on the suction side and two filters on the pressure side (one on each boom wing).

All filters are easily accessible and can be quickly isolated from the spray circuit. To clean the suction filter merely stop the pump and set the valve positions to 4D prior to opening the suction filter.

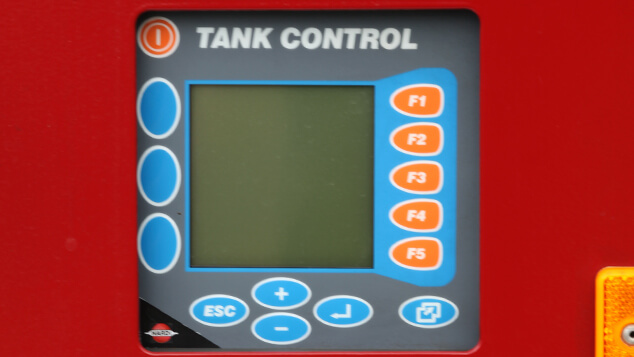

Tank control screen

The Tank Control screen is a very intuitive and user friendly tool that greatly eases the tank filling and valve setting operations.

The electronic tank gauge monitors the filling process; the calculator will automatically shut off the pump once the preset tank volume has been reached.

The operator can choose to either add on a certain water volume to the existing tank load or to define an overall target volume to be reached.

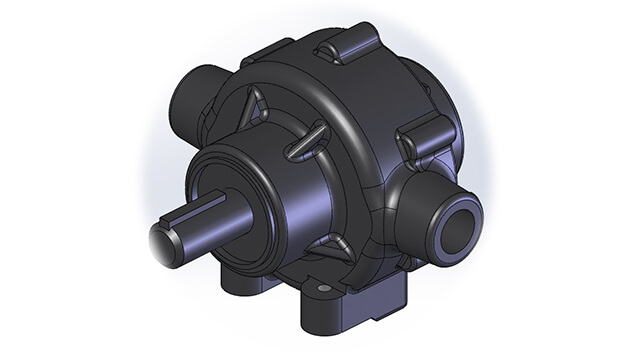

Hypro centrifugal pump

The HELLIOS are equipped with a Centrifugal pump delivering 500l/ min. as a standard.

For farmers intending to spray higher volumes or to spray at high pressures, the HELLIOS can be optionally equipped with a Hypro centrifugal pump with a nominal flow of 692l/ min.  At 6 bar pressure, the pump still delivers 300l/ minute.

The spray pump is coupled to a priming pump located underneath the rinse tank.
